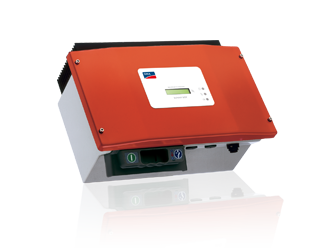

Sunny Boy 3000
The Sunny Boy 3000 belong to our favorite Solar Inverter. This is due to the extremely solid engineering as well as a proven circuitry concept.
The devices operate extremely efficiently and guarantee maximum yields. A greater input voltage range allows for flexibility in the generator design.
Safe
- Integrated DC circuit breaker Electronic Solar Switch (ESS)
- Electric separation
Flexible
- For outdoor and indoor installation
- Wide range of display and communication options
Reliable
- Worldwide SMA Service including Service Line
- Comprehensive SMA Warranty program
| Input (DC) | 3000 |
| Max. DC-voltage | 600 V |
| Max. input current | 12.0 A |
| Quantity MPP-Trackers | 1 |
| Output (AC) | |
| Max. AC-power | 3000 W |
| Nominal AC-voltage | 220 V - 240 V |
| AC-grid frequency | 50 Hz / 60 Hz |
| Efficiency | |
| Max. Efficiency | 95.00% |
| Euro-eta | 93.60% |
| Protection Device | |
| Integrated DC-Circuit breaker ESS | |
| General Data | |
| Operating temperature range | -25° C - +60 ° C |
| Topology | low frequency Transformer |
| Cooling concept | convection |
| Mounting location: inside / outside (IP65) | yes / yes |
| Configuration | |
| LCD-Display | yes |
| Interface: RS485/remote wireless | optional / optional |
