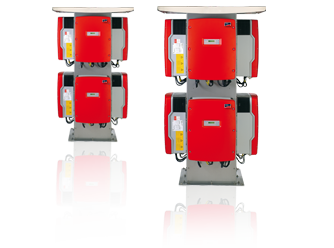

Sunny Tower with 6 SMC 11000TL
s easy to install as a central inverter, as profitable as a Sunny Mini Central: The Sunny Tower offers the advantage of string technology and central inverter in one.
Six Sunny Mini Centrals are integrated into a stainless steel assembly tower. Equipped for example with the SMC 8000TL the Sunny Tower provides an efficiency of 98 %. The MPP Trackers of the individual inverters ensure the best possible utilization of the generator.
Upon delivery the complete Sunny Tower assembly is pre-installed, the cabling factory-prepared. A single connection point on the AC side ensures uncomplicated comissioning.
Powerful
- Efficiency up to 98 %
- increased yield due to multiple MPP trackers
- OptiCool cooling system
Usability
- Delivered as a turn-key solution
- Easy installation
- easy-to-follow commissioning
Flexible
- Modular Design
- Combination of different Sunny Mini Centrals possible
Safe
- Integrated DC circuit breaker Electronic Solar Switch (ESS)
- Worldwide SMA Service including Service Line
- Comprehensive SMA Warranty program
| Input (DC) | with 6 SMC 11000TL |
| Max. DC-voltage | 700 V |
| Max. input current | 6 x 34 A |
| Output (AC) | |
| Max. AC-power | 66 kW at 40 °C |
| Nominal AC voltage | 220 V - 240 V |
| AC grid voltage | 50 Hz / 60 Hz |
| Efficiency | |
| Max. Efficiency | 98.00% |
| Euro-eta | 97.50% |
| Protection Device | |
| Integrated DC-Circuit breaker ESS | |
| Degree of protection | |
| Per DIN EN 60529 | IP65 (inverter) |
| IP44 (Sunny Tower) | |
| Mechanical data | |
| width x height x depth in mm | 1100 x 1800 x 990W |
| eight | 320 kg |
