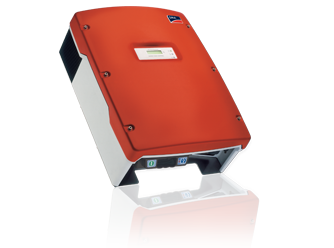

Sunny Mini Central 8000TL

With the transformerless Sunny Mini Centrals, SMA is setting new standards. The new inverter topology enables an efficiency of over 98%. Optimized manufacturing processes lead to the lowest current specific price. Thus the PV system pays for itself in the shortest time.

Three different power classes ensure flexibility of the system design. The housing, suitable for use outdoors, allows for installation close to the generator and simplifies the cabling on the DC side.


  • Efficiency > 98%
  • OptiTrac-MPP control for best tracking efficiency with MPP tracking
  • OptiCool cooling system
  • Transformerless


  • Graded power classes
  • Ideally combinable with Sunny Mini Central 9000TL / 10000TL / 11000TL
  • For indoor and outdoor installations


  • Integrated DC circuit breaker Electronic Solar Switch (ESS)
  • Worldwide SMA Service including Service Line

Input (DC) 8000TL
Max. DC-voltage 700 V
Max. input current 25 A
Quantity MPP-Trackers 1
Output (AC)
Max. AC-power 8000 W
Nominal AC voltage 220 V - 240 V
AC grid frequency 50 Hz / 60 Hz
Max. efficiency 98.00%
Euro-eta 97.60%
Protection Device
Integrated DC-Circuit breaker ESS yes
General Data
Operating temperature range -25° C - +60 ° C
Topology Transformerless
Cooling concept OptiCool
Mounting location: indoor / outdoor (IP65) yes / yes
LCD-Display yes
Interface: RS485/remote wireless optional / optional
